EPON

8FE EPON ONU

8FE EPON ONU

Type：EPON ONU

Contact Us

Tel：+86 21-57722935

Skype：+86 17612180002

Whatsapp：+86 17612180002

Commissioner：Amy

View More EPON

  • Description
  • Parameter
BL-GE6108F 8FE EPON ONU

BL-GE6108F EPON ONU meets the requirements of Telecom Operators for FTTO, FTTD, FTTH broadband rate, SOHO broadband access, video surveillance, etc. and designs EPON Gigabit Ethernet products. Based on proven Gigabit EPON technology, this product is highly reliable and easy to maintain, providing guaranteed QOS for different services. It is fully compliant with ITU-T G.984.x and IEEE802.3ah standards.

Features
  • IEEE802.3ah standard.
  • Max Transmission Distance: 20km.
  • Plug and play, auto-detecting, auto-configuration and auto firmware upgrade, etc.
  • Supporting OAM remote configuration and maintenance function.

Applications
  • FTTH
  • FTTD
  • Operators' front-end Network Coverage
  • Private Network Construction
  • CCTV Surveillance
  • Enterprise Campus Network Access
Specifications
Parameters Specification
PON Interface 1 x SC/UPC optical port
Wavelength TX 1310nm/RX 1490nm
Speed Rate Uplink: 1.25Gbps
Downlink: 1.25Gbps
Optical Output Power -1~+4dBm
Receiving Sensitivity ≤-28dBm
Max Transmission Distance 20km
Ethernet Interface 8 x 10/100 RJ45 port
Operation Temperature -10～+45℃
Storage Temperature -30～+60℃
Humidity 10～90% (No condensation)
Power Supply External power adapter: AC100~240V to DC12V 0.5A
Power Consumption ≤4W
Dimensions 205mm (L) ×125mm (W) ×27mm (H)
Weight 900g

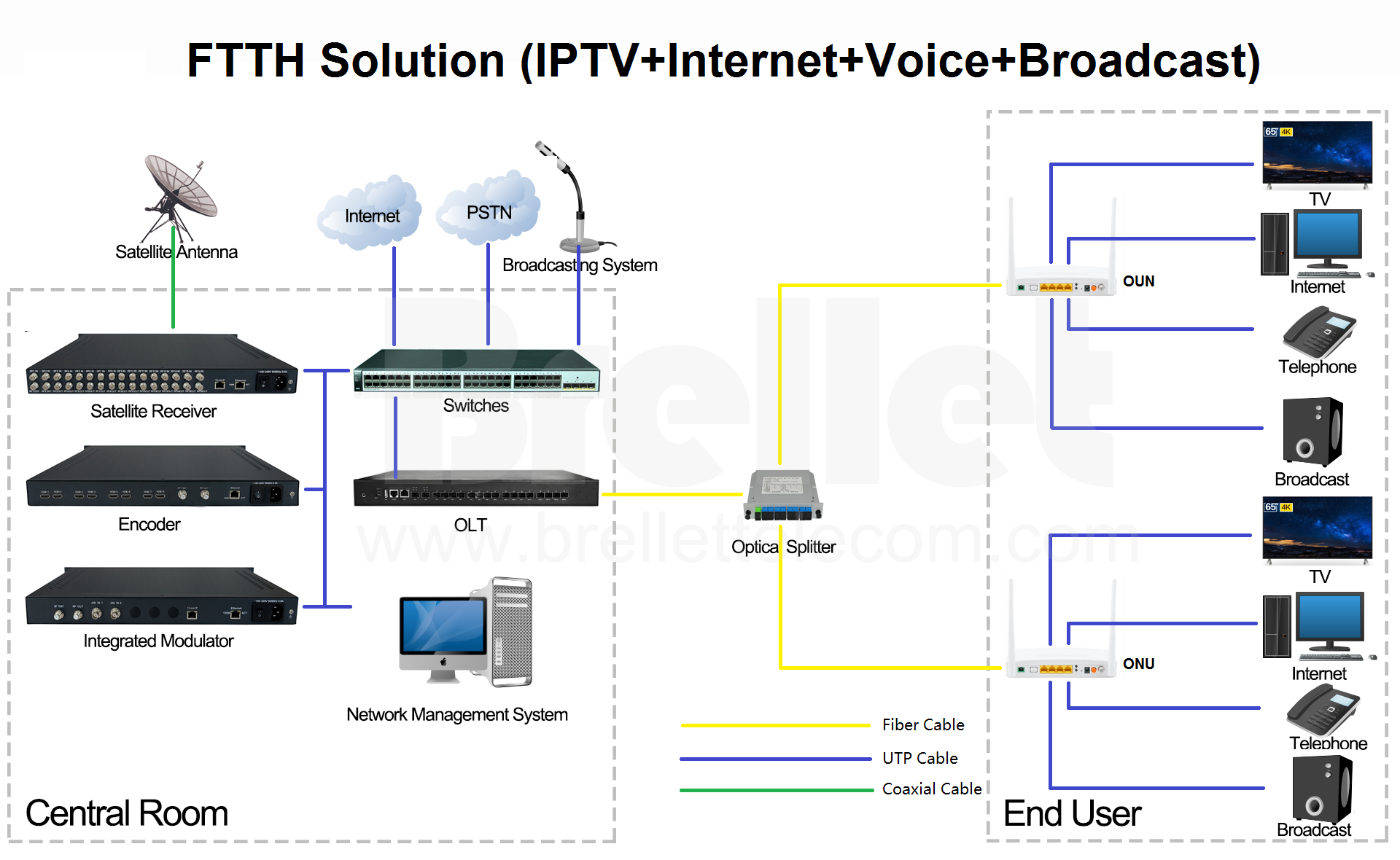

Application Topology


Ordering Information
Part Number Product Name Description
BL-GE6108F Optical Network Unit (ONU) EPON; 1*SC/UPC optical port, 8*10/100M RJ45 ports; External power adapter: AC100~240V to DC12V.
