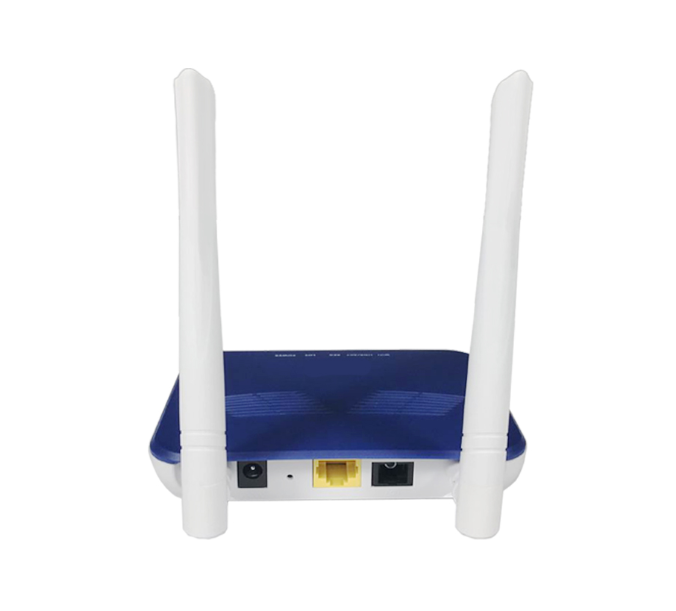

BL-XP801G-W 1GE+WIFI HGU XPON ONU
BL-XP801G-W is 1GE+WiFi XPON (GPON and EPON dual mode) HGU ONU. It is designed for meeting the multi-service needs of fixed network operators or cable operators and widely used in FTTO (Office), FTTD (Desk), FTTH (Home) broadband access, video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology and has high cost performance in its price, stableness, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirements of GPON/EPON equipment from China Telecom. Dual mode ONU can automatically detect OLT and switch PON mode and it can be used as GPON or EPON. It can also be applied to a wide temperature environment with a powerful firewall function.
Features
-
HGU ONU, bridging and routing modes can be set.
-
Dual mode ONU compatible with popular GPON and EPON OLT.
-
Support loop detection, IGMP and IGMP snooping.
-
802.1Q VLAN, QinQ, Cos, DSCP and QoS for priority of service.
-
Support port speed and storm suppression.
-
WiFi supports 802.11n speed up to 300Mbps.
-
Support No-auth, WEP, WPA-PSK and WPA2-PSK.
-
Support Telnet, CLI, OMCI/OAM and Web management.
-
Support NAT and Firewall function.
-
Support remote software upgrade.
Applications
-

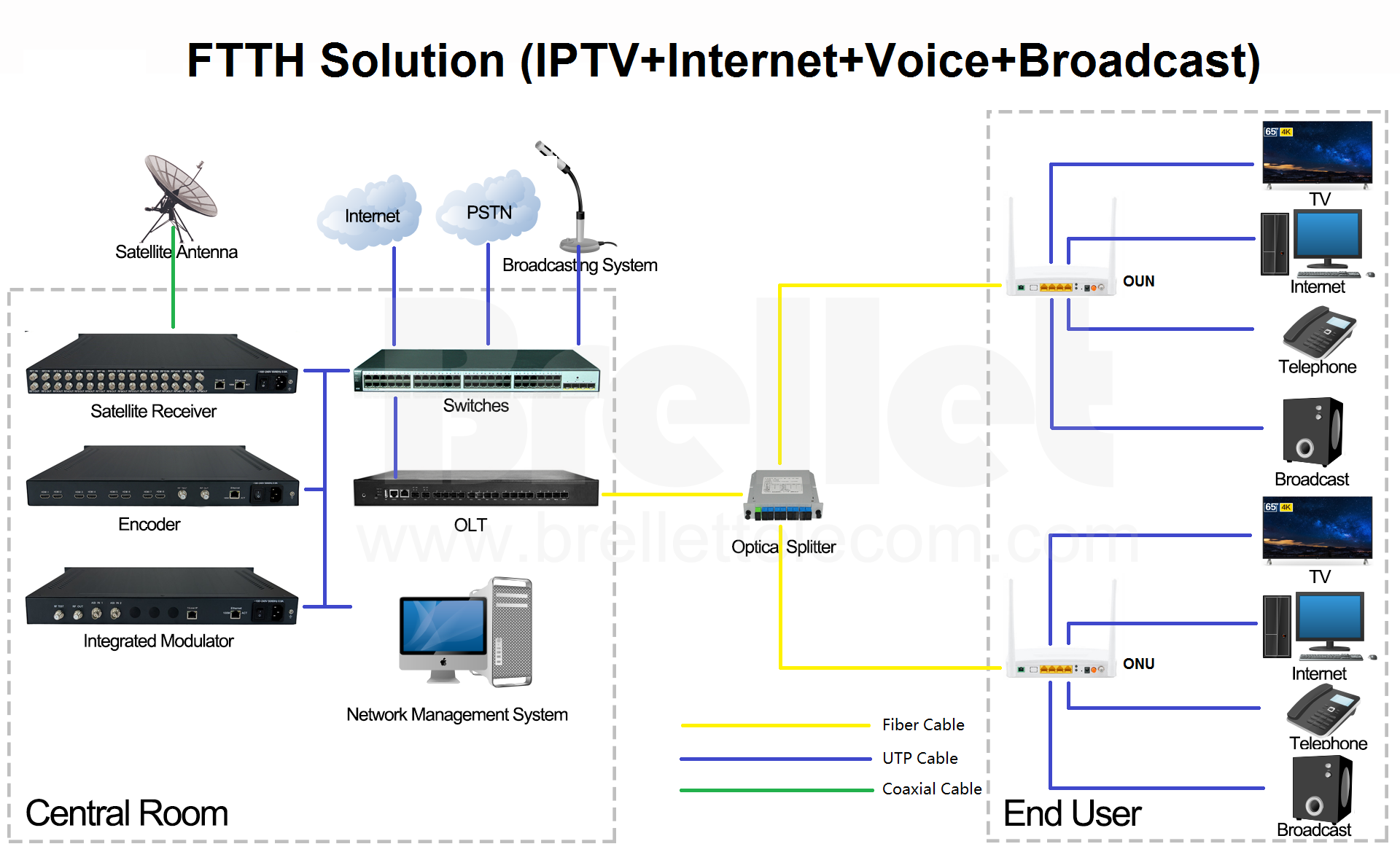

FTTH
-
FTTD
-
CATV
-
Operators' front-end Network Coverage
-
Private Network Construction
-
CCTV Surveillance
-
Enterprise Campus Network Access
