Passive Components

TAP Optical Splitter

TAP Optical Splitter

Type：Optical Splitter

Contact Us

Tel：+86 21 57722935

Skype：+86 17612180002

Whatsapp：+86 17612180002

Commissioner：Amy

View More Passive Components

  • Description
  • Parameter
TAP Optical Splitter

Pictures


Features
  • Low insertion loss – minimize impact on data flows
  • Tap is fully passive – monitoring infrastructure, does not impact network availability
  • Does not modify traffic – tools see real copies of the packets from the network
  • Cost effective – avoid costly expenses managing SPAN ports
  • High density – Save valuable rack real estate
  • Operating Temperature：-40℃ ~ +85℃

Applications
  • CATV
  • PON network
  • Data Center

Specifications
Parameters Specification
Fiber Type OM1/OM2/OM3/OM4
Operating Wavelength (nm) 850 or 1310 or customized
Working Bandwidth (nm) ±40
Typical Excess Loss (dB) 0.4
Insertion Loss (dB) 50/50 ≤3.8/3.8
60/40 ≤2.7/4.7
70/30 ≤2.1/6.0
80/20 ≤1.4/7.8
90/10 ≤0.9/11.2
Return Loss (dB) ≥30
Directivity (dB) ≥40
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Note: All above specifications do not include connector loss and adaptor loss.

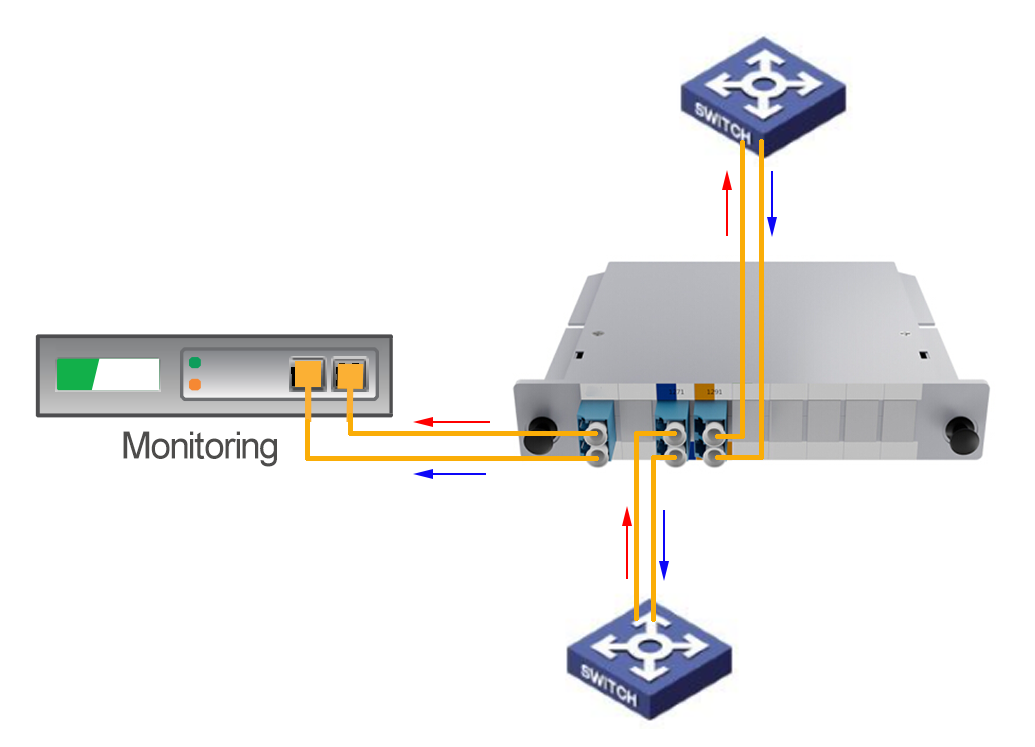

Application Topology

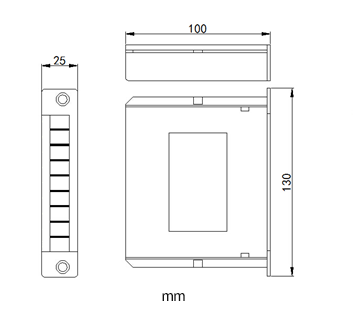

Dimension
